Plumbing Kit for Type 9 or T5 Hydraulic Release Bearing

Be the first to review this product

Availability: In stock

£63.00
OR

Quick Overview

Connects our hydraulic release bearing to your car's pedal box.

Plumbing Kit for Type 9 or T5 Hydraulic Release Bearing

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

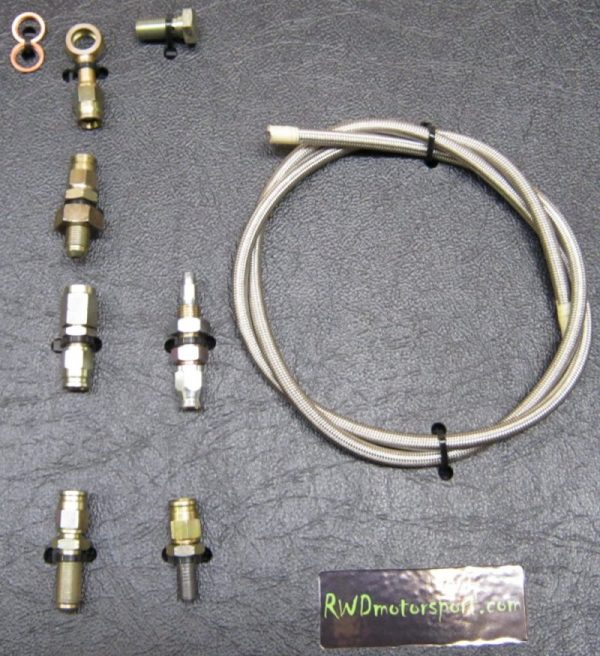

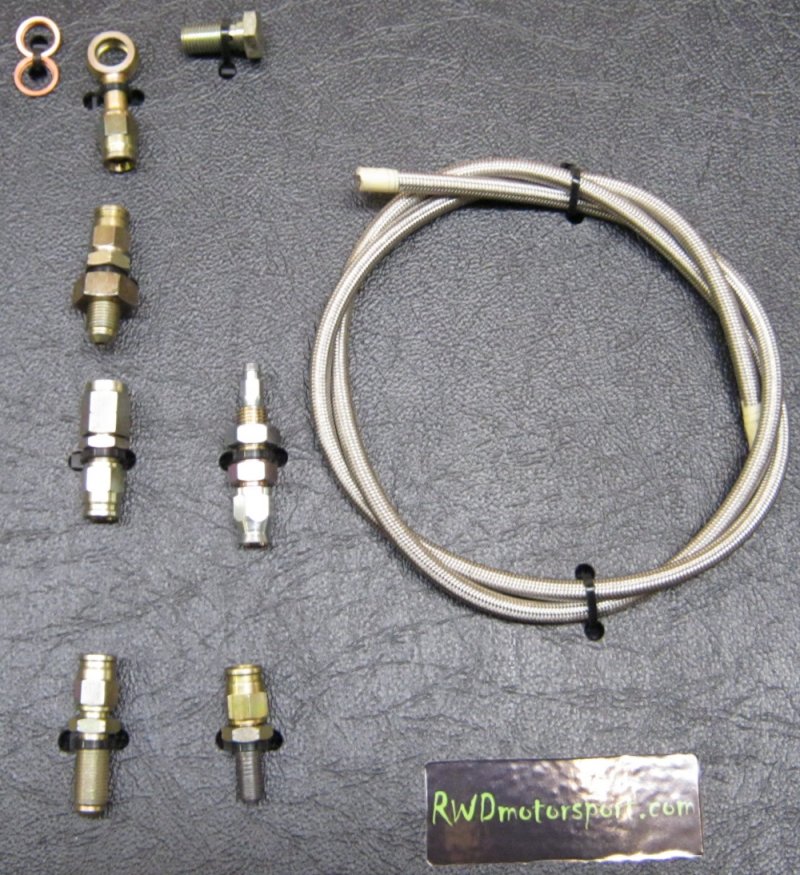

The kit consists of:

  • 1metre length of dash 3 braided hose
  • Banjo fitting bolt and copper washers (3/8 UNF) for master cylinder feed to release bearing
  • Bulkhead fitting
  • Swivel union (engine bay side of bulkhead)
  • Male union to suit release bearing feed
  • Male union to suit release bearing bleed
  • Remote bleed screw

Please see the Fitting Instructions for more information

Please note that the slave cylinder must be in a partially compressed form when installed. Fitment of the slave cylinder in the extended state will result in the bearing being forced off the end of the inner shaft when the clutch is depressed. When used in a custom installation please check the actuation of the slave cylinder over the entire clutch pedal stroke.

The slave cylinder and bearing work in a different way to a manual installation in that the release bearing is in constant light contact with the clutch diaphragm fingers. This is achieved by an internal spring within the thrust bearing. There is no need to be concerned that the release bearing is in contact with the diaphragm at all times.

Additional Information

Product Code AF44
