Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc Kit
Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc Kit
£414.75
This high quality heavy duty clutch kit kit includes an uprated clutch cover, release bearing and friction disc

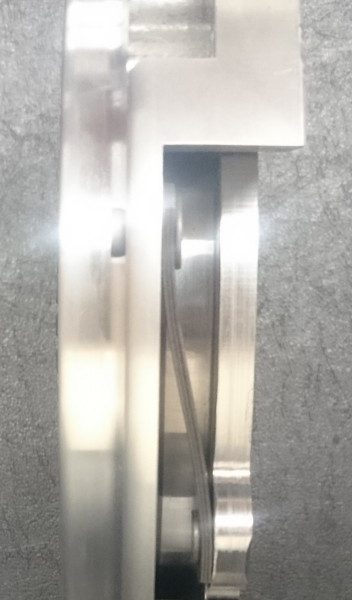

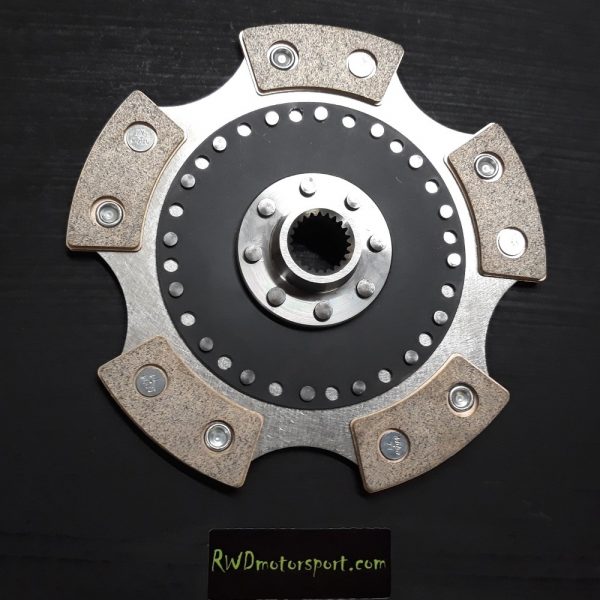

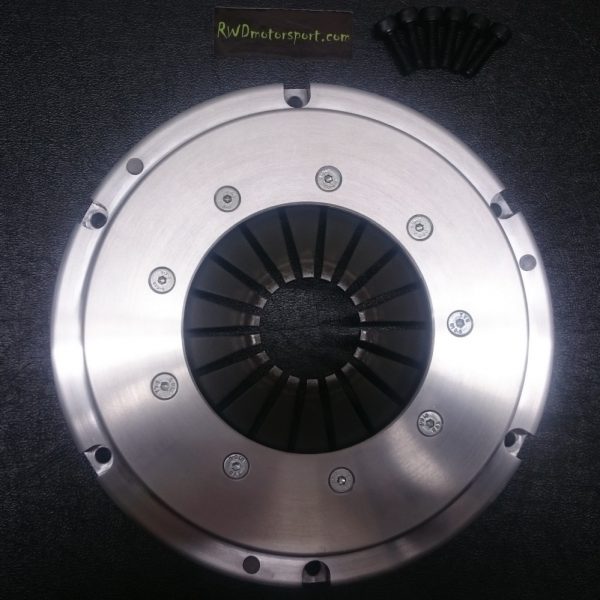

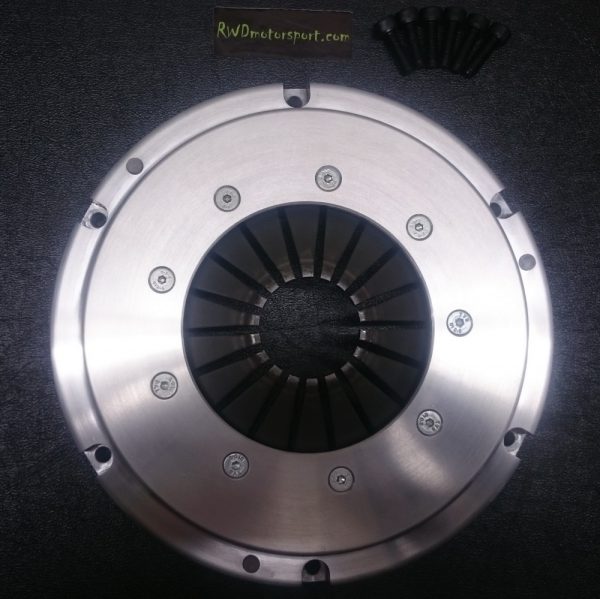

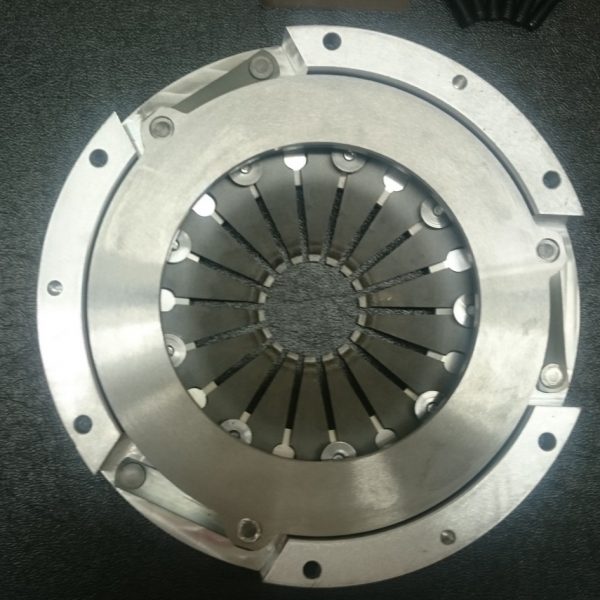

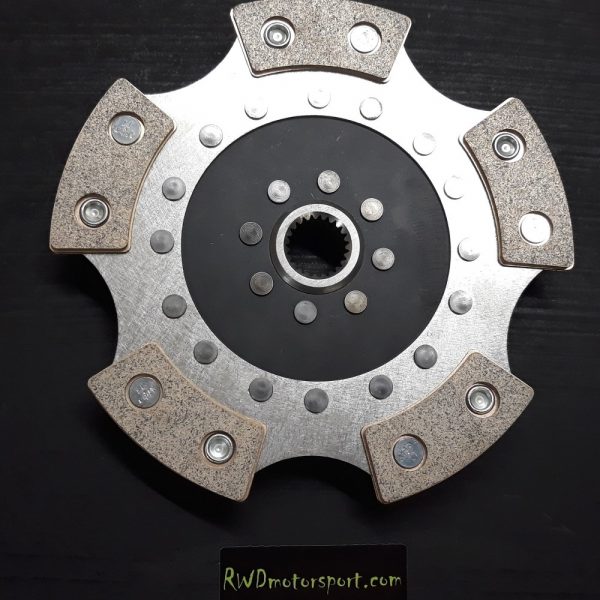

Specially made for RWD Motorsport. Comprising a heavy duty aluminium clutch cover, retaining bolts, bearing and heavy duty 5 paddle friction disc. Direct replacement for the difficult to get hold of AP Racing clutch cover CP2511-1 and 5 paddle friction disc.
Suitable for use with any Ford Type 9 or 4 speed gearbox and engine combination including:
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing (if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing(if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Pinto or Cosworth to Borg Warner T5 Bellhousing
RS2000 Type Bellhousing (cable clutch)
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
Specification and Application
ApplicationsKit cars
Rally / race
Fast road
| Components | Heavy Duty Aluminium Clutch Pressure Plate Heavy Duty Ceremetallic 5 Paddle Clutch Plate Release Bearing Clutch Cover Cap Head Bolts |
| Clutch Torque Capacity | 280 ft lb / 380 Nm |
| Clutch Friction Disc Thickness | 0.33″ / 8.5mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
| Engine | Any engine that either uses the Ford Pinto 8 1/2″ clutch or has a flywheel modified or purchased from RWD Motorsport that will accept an 8 1/2″ clutch |
| Compatible Lightened Flywheels | Ford Duratec Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec E Lightweight Steel Flywheel Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 Borg Warner T5 * Borg Warner T5 information |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
* SIerra Cosworth 23 spline 1″ input shaft only
Additional information
| Weight | 4.5 kg |
|---|
