Honda K20 or K24 Water Outlet
Honda K20 or K24 Water Outlet
£95.00
Honda K20 upper coolant housing that redirects the outlet to 90 degrees from the engine.
When fitting Honda K20a, K20a2, K20a3, K20z1 or K24a1 engines in a RWD position the standard outlet points towards the bulkhead.
This housing redirects the outlet to 90 degrees from the engine. It has a dash12 male thread and provision for the factory recirculation and a 1/8” bsp port for the temperature sender.

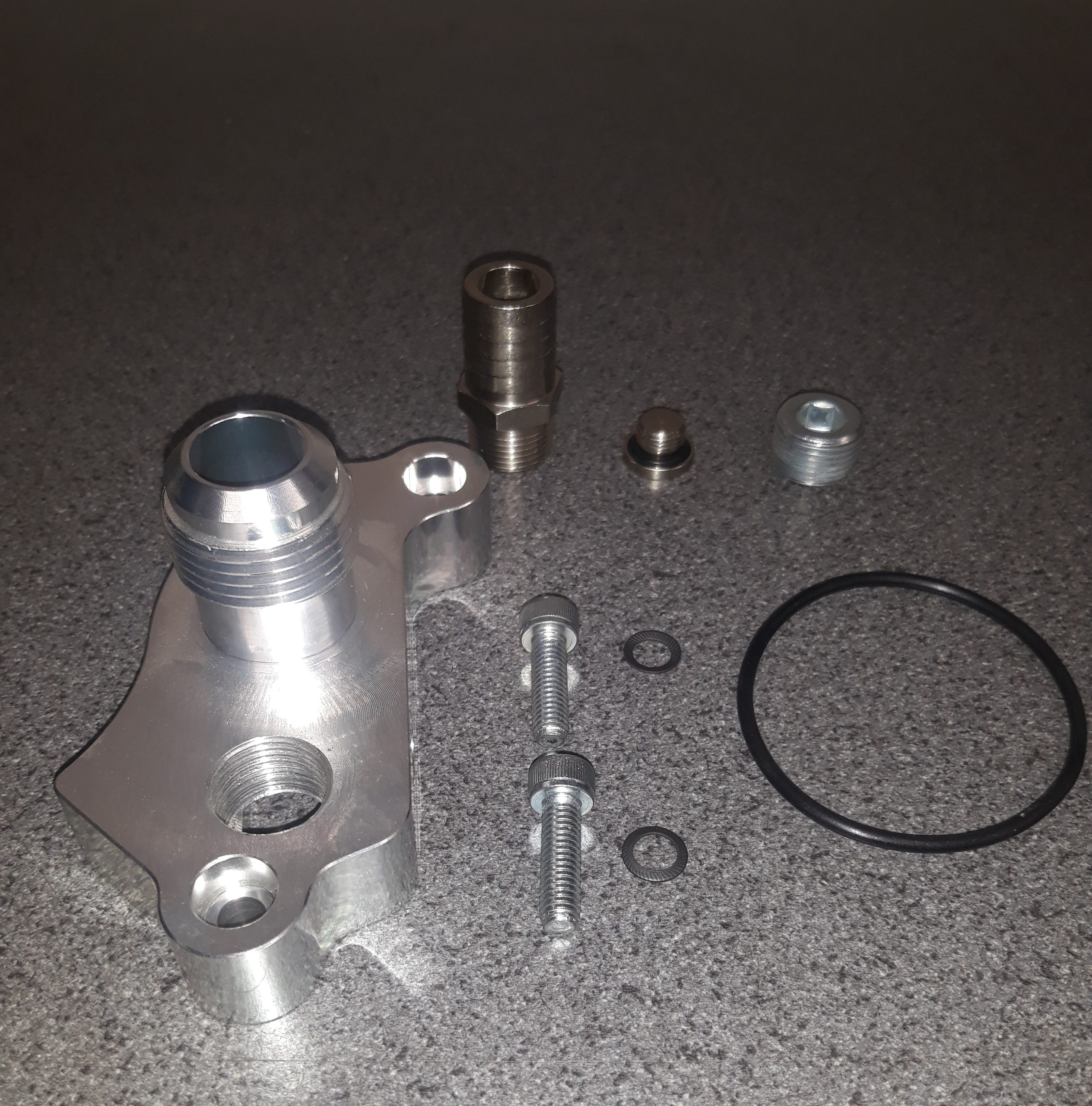

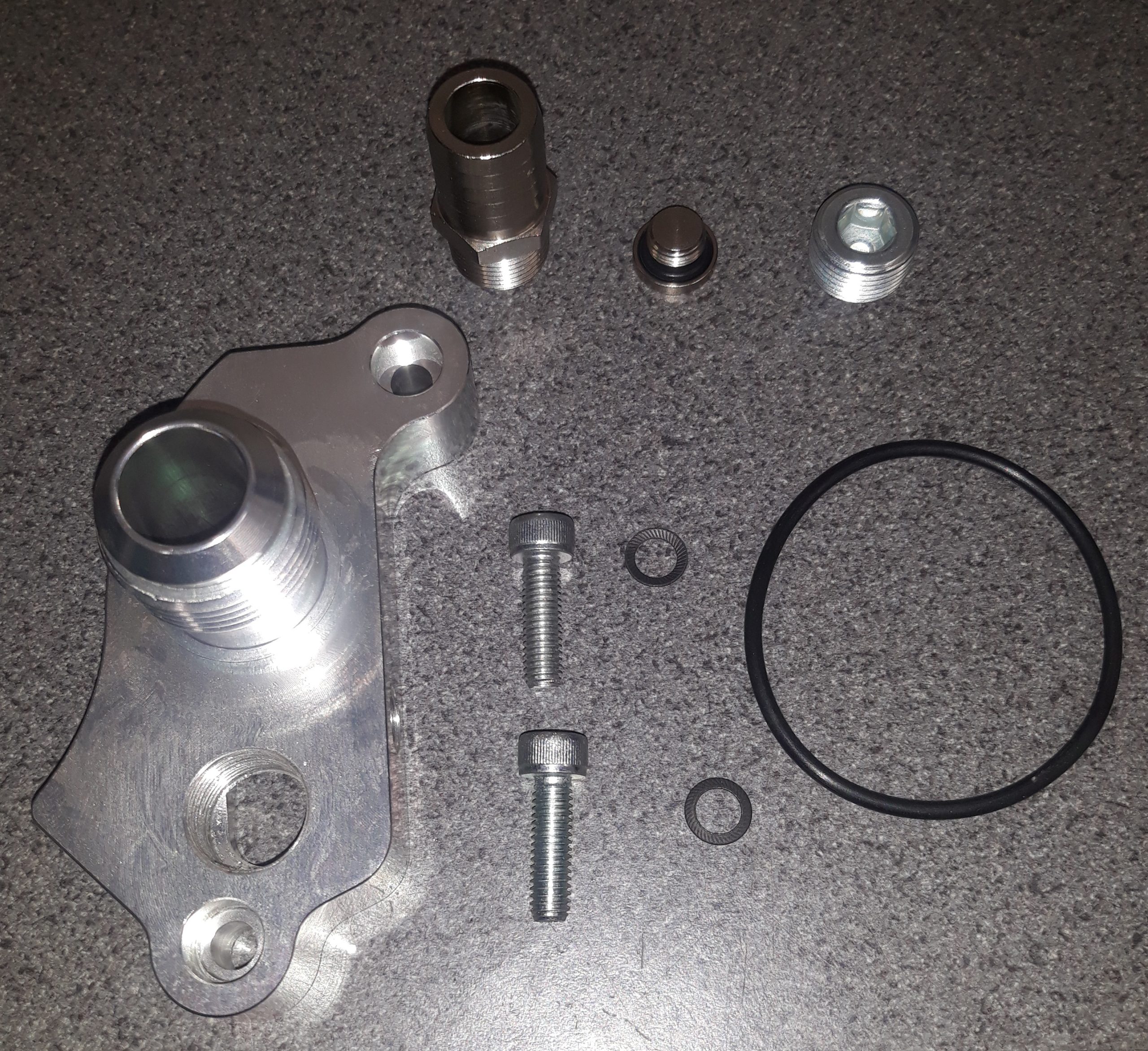

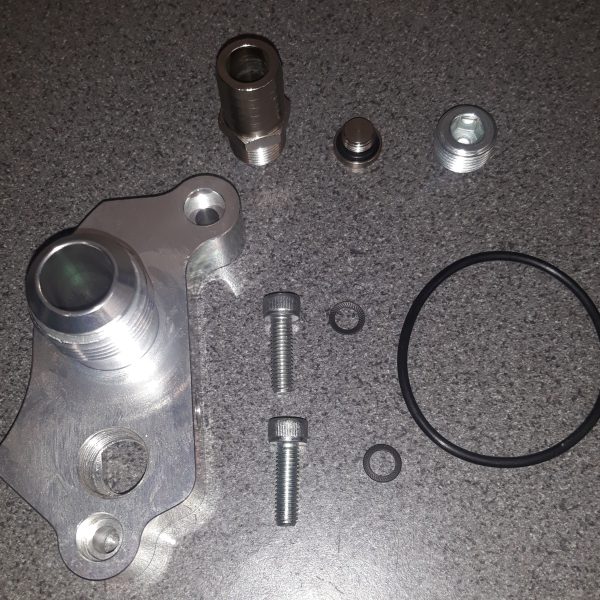

All the hardware required to fit the outlet is included, comprising the O ring seal, mounting bolts, hose union and blanking plugs.
Specification and Application
Component | Honda K20 or K24 Water Outlet |
Type | Modified water outlet |
Engines | Honda K20 Honda K24 |
Applications | Kit Cars |
Additional information
Weight | 1 kg |
---|
