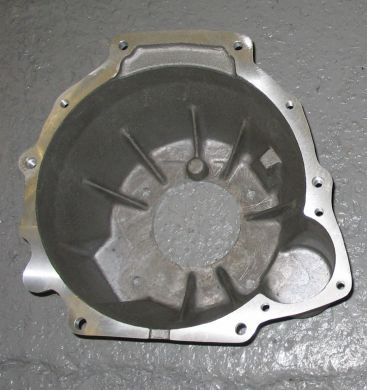

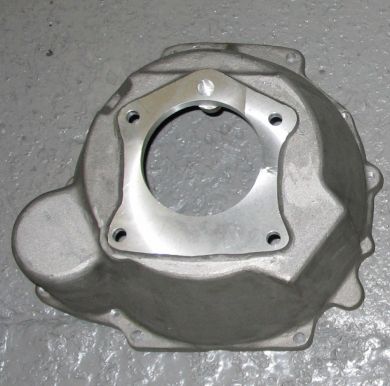

Sierra Direct Replacement Cable Clutch Bellhousing
This bellhousing is a direct replacement for the cast iron Ford Sierra item.
It can be used for the same engine / gearbox combinations as for the RS2000 Type Bellhousing but with the starter motor on the left hand side and the clutch cable mount cast into the bellhousing.
Machined to order (lead time approximately 10 days).
You may also be interested in our Ford Pinto Lightweight Steel Flywheel.
Please see these related products in the right hand column.
Specification and Application
|Component||Ford Sierra direct replacement alloy bellhousing|
Machined on front and rear faces
Tapped to take standard clutch fork (not included)
|Gearbox to Engine Face||7 inch (178mm)|
|Engines||Ford 1.6/2.0 SOHC (Pinto)|
Ford 1.3/1.6 x/flow
Ford pre x/flow
Lotus Twin Cam
N/A Cosworth *
|Gearboxes||Ford Type E (Rocket) 4 speed|
Ford Type 9 (Sierra) 5 speed **
Rally/Race – MkI/II Escort, Sierra, Lotus Cortina
* Requires smaller 9 bolt flywheel if using standard crankshaft
** 2.0l only; the 2.8l gearbox requires an additional adaptor plate due to the longer 1st motion shaft
