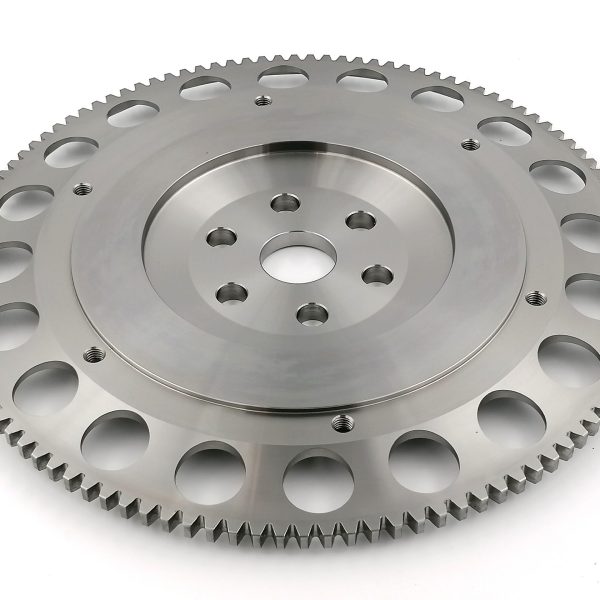

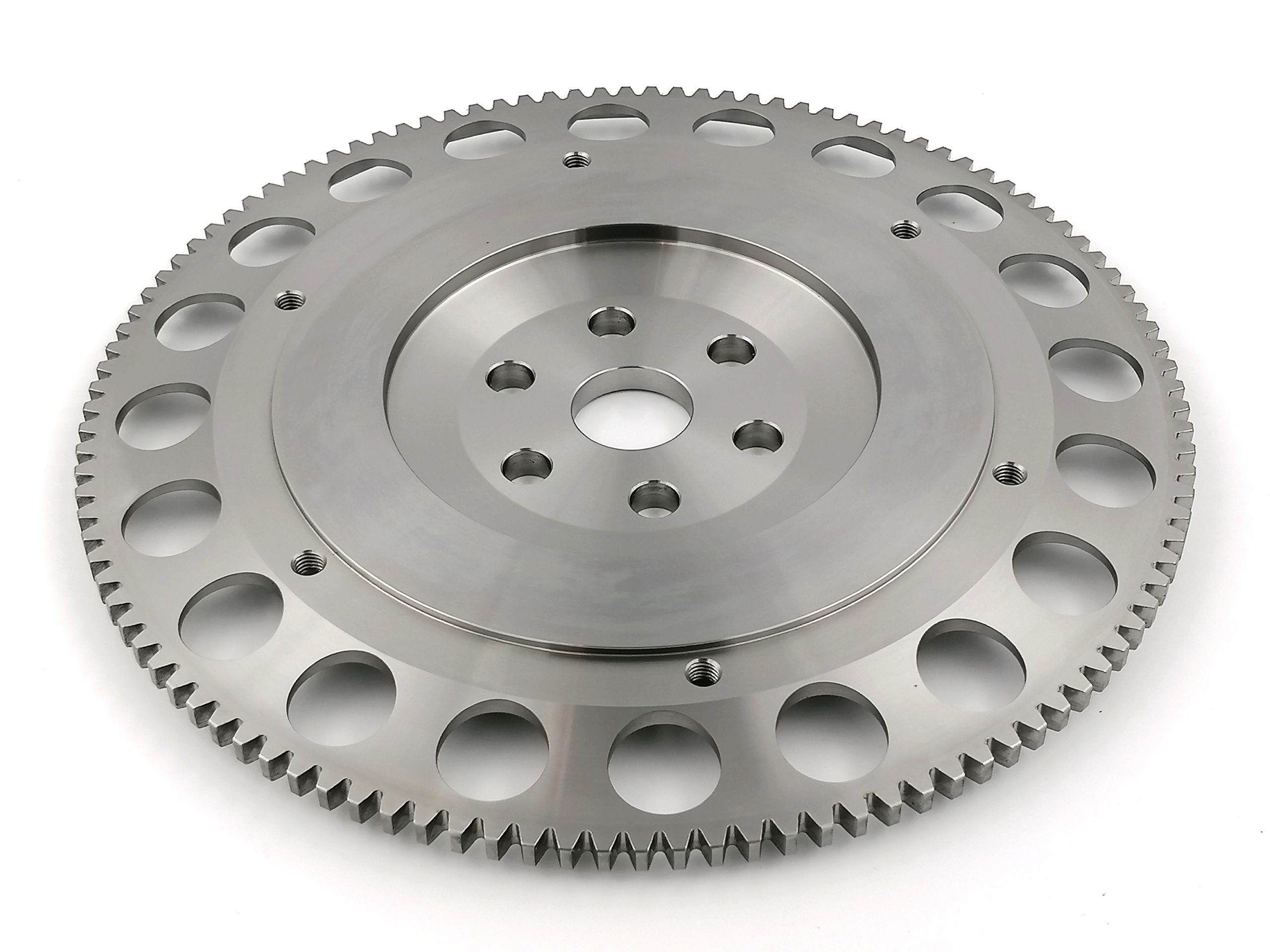

Ford Duratec lightweight Steel Flywheel – 7 1/4″ Race Clutch Plate
Ford Duratec lightweight Steel Flywheel – 7 1/4″ Race Clutch Plate
£303.85
2.0 or 2.3 Ford Duratec lightweight steel flywheel to suit Twin plate 7 1/4″ paddle clutch. With integral starter ring (ring gear is machined into the flywheel)
Download a Fitting Guidance Notes document.
Specification and Application
| Component | Lightweight Steel Flywheel |
| Type | Replaces incompatible standard dual mass flywheel Integral starter ring |
| Weight | 4.0Kg |
| Diameter | 290mm total diameter including starter ring gear |
| Crank face to clutch face | 16mm |
| Engines | Ford Duratec HE |
| Clutches | Use with our Twin plate 7 1/4″ paddle clutch |
| Starter Motor | Ford Mondeo or Focus model number 1S7U 11000 AD or patterned alternative |
| Applications | Kit Cars Rally/Race – MkI/II Escort, Sierra, Lotus Cortina BriSCA F2 Classic Ford Fast Road |
* Please note that some Duratec 2.3 donor vehicles such as the Ford Ranger use a larger 116 teeth flywheel. The starter motor from these vehicles are not compatible with the smaller 112 tooth flywheel as they have a 10mm greater offset. Please use the standard Ford Mondeo or Focus stater motors
Note:
You are able to use standard bolts with this flywheel but you will need to shorten them slightly so that they don’t bottom out when you tighten them (due to thinner flywheel face). Alternatively and for added security choose our Duratec ARP flywheel bolt set.
Additional information
| Weight | 5 kg |
|---|
