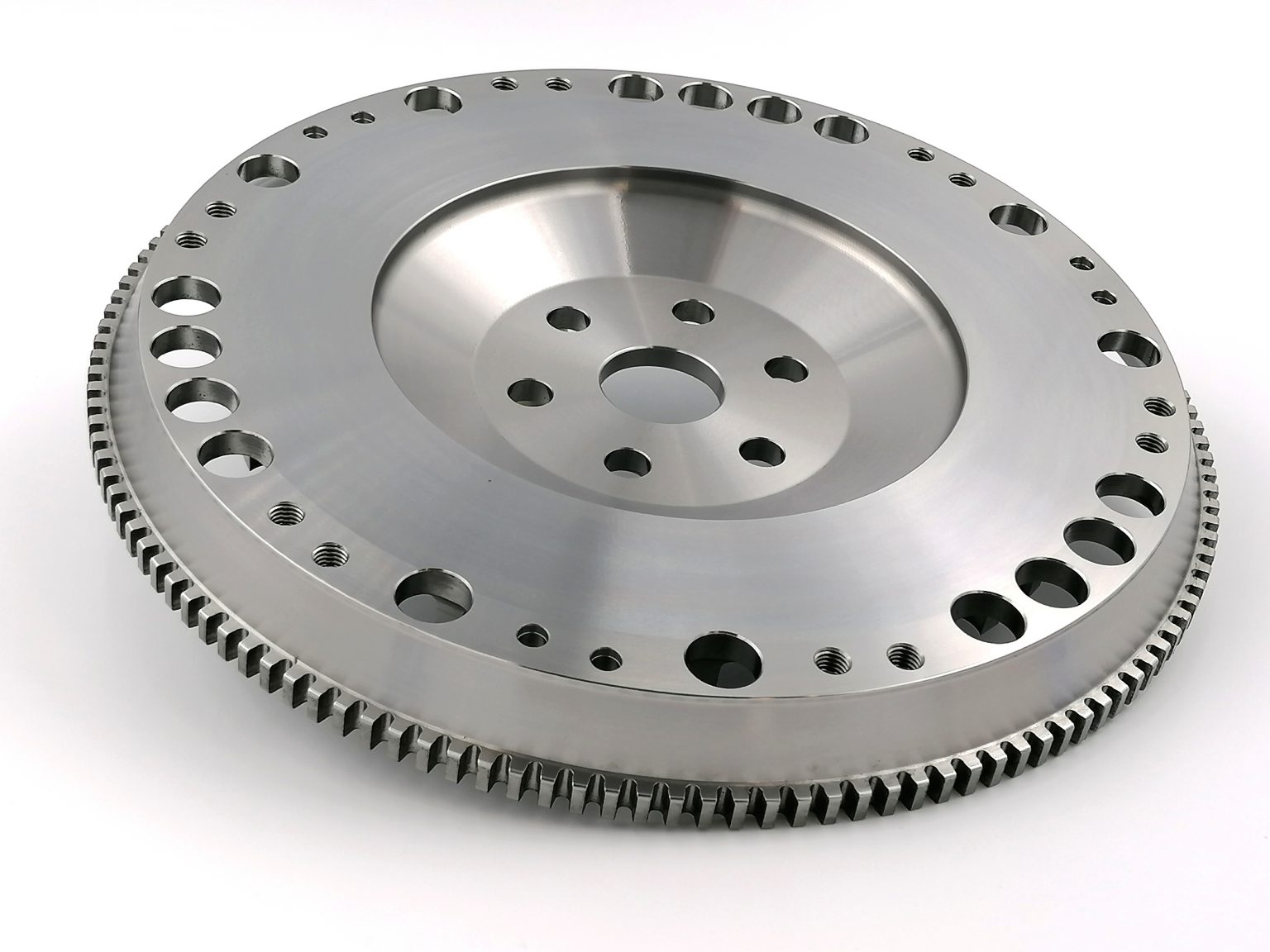

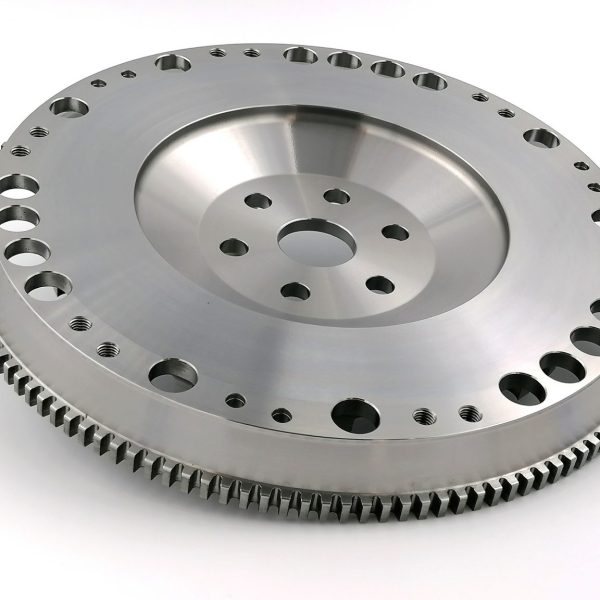

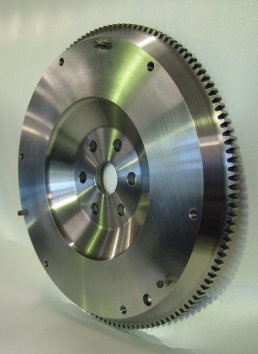

Ford Zetec E Lightweight Steel Flywheel
Ford Zetec E * lightweight steel flywheel to suit standard 220mm diameter Zetec E clutch cover and Ford 8 1/2″ clutch plate or Ford Pinto 8 1/2″ clutch plate and cover (comes pre-drilled to suit either option). Machined from billet steel, our flywheels feature an integral ring gear. Much lighter than the original flywheel this flywheel is suitable for a standard or uprated Ford 8 1/2″ clutch.
By reducing the weight of the flywheel over the standard Zetec E item to as little as a half, the resulting reduced inertia gives better acceleration, especially in the lower gears. In addition, the reduced weight at the flywheel edges allows quicker gear changes, and increased engine braking. Comes with integral starter ring (ring gear is machined into the flywheel). Comes with inductive pulse pick-up
Download a Fitting Guidance Notes document.
Specification and Application
|Component||Lightweight Billet Steel Flywheel|
|Type||Dynamically balanced with integral ring gear and inductive pulse pick-up to suit standard or uprated Ford 8 1/2″ 23 spline clutch and Zetec or Ford Pinto cover|
|Benefits||Reduces the weight of the standard Zetec E cast iron flywheel|
|Engines||Ford Zetec E 1.8 and early 2.0L|
|Clutches||Recommended 8 1/2″ Clutch Cover and Friction Disc for fast road up to 150bhp (cover only suitable for Ford Pinto Clutch option)|
AP Racing clutch cover CP2511-1** and AP Racing Heavy Duty Clutch Plate CP5352-5 for power greater than 150bhp or competition use.
Rally/Race – MkI/II Escort, Sierra, Lotus Cortina
* Zetec E only. Please note that this bellhousing does not fit the newer Zetec SE engines, which are the 1.4 – 1.7 (Sigma) engines and are usually found in Pumas and Fiestas
** Only suitable if the Ford Pinto Clutch cover is required
