Honda K20 Heavy Duty Clutch Cover and Friction Disc Kit
Honda K20 Heavy Duty Clutch Cover and Friction Disc Kit
£399.00 – £415.00

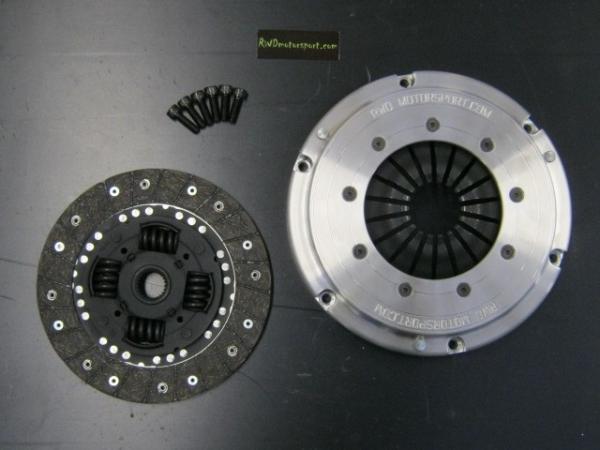

This high quality heavy duty clutch kit kit includes an uprated clutch cover,retaining bolts and friction disc
Specially made for RWD Motorsport. Comprising a heavy duty aluminium clutch cover, retaining bolts and heavy duty clutch friction disc. Bolts directly to the standard Honda K20 flywheel*.
Suitable for use with the Honda K20 And K24 To Ford Type 9 Bellhousing.
Please see the Honda K20 Engine page for more information.
Specification and Application
| Components | Heavy Duty Aluminium Clutch Pressure Plate Heavy Duty Organic Clutch Plate Clutch Cover Cap Head Bolts |
| Clutch Torque Capacity | 280 ft lb / 380 Nm |
| Clutch Friction Disc Thickness | 0.30″ / 7.5mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
| Engine | Honda K20 |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 |
| Applications | Kit cars Rally / race Fast road |
* Does not fit the standard K24 flwyheel, which has a larger bolt PCD
Additional information
| Weight | 4.5 kg |
|---|---|
| Clutch Plate | Organic, Paddle |
