Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung Centre
Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung Centre
£126.00

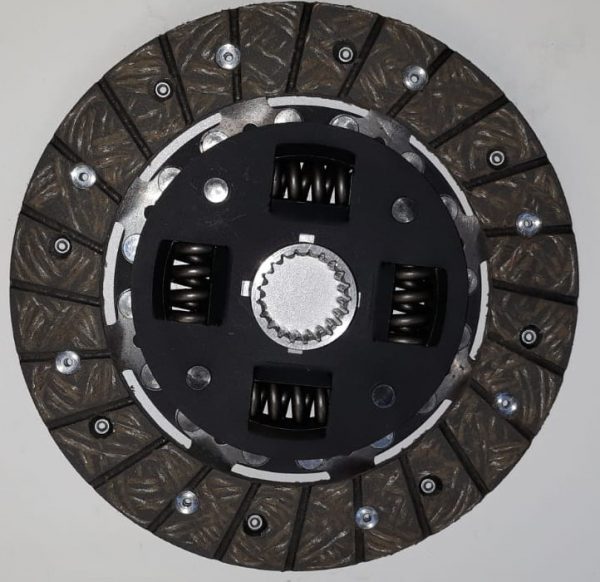

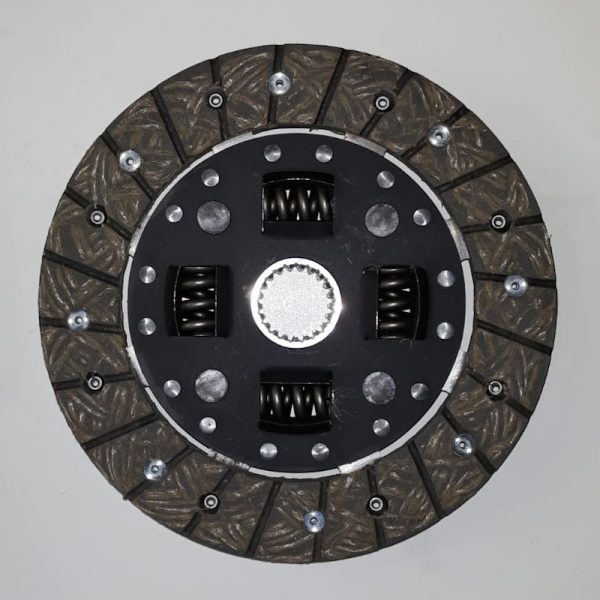

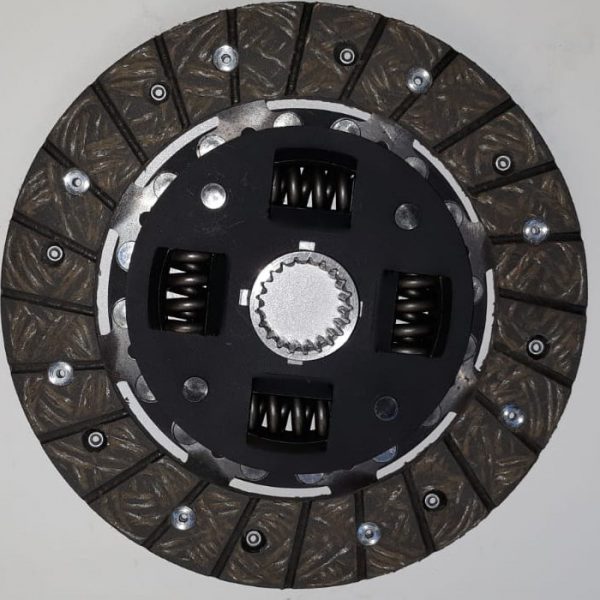

Heavy duty Toyota 190mm clutch friction disc with a 28mm diameter 21 spline centre hub.
Suitable for use with the Toyota W Series gearboxes and the Toyota 3 cylinder 1KR-FE engine
Specially made for RWD Motorsport.
Suitable for use with our 1KR-FE Toyota Engine to Toyota W Series Gearbox Bellhousing.
Specification and Application
Components | Heavy Duty Organic Clutch Plate |
Clutch Torque Capacity | 280 ft lb / 380 Nm |
Clutch Friction Disc Thickness | 0.33″ / 8.5mm |
FrictionDisc Diameter | 190mm |
Splines | 21 |
Input Shaft Diameter | 28mm |
Engine | Toyota 3 cylinder 1KR-FE |
Compatible Lightened Flywheels | Standard Toyota 3 cylinder 1KR-FE flywheel. |
Gearbox | Toyota W series including: W56 W58 |
Applications | Kit cars Rally / race Fast road |
Additional information
Weight | 1.5 kg |
---|
