Vauxhall 2.0XE Engine to Borg Warner T5 Bellhousing
Vauxhall 2.0XE Engine to Borg Warner T5 Bellhousing
£214.99
This bellhousing allows the Vauxhall 2.0XE Engine to be connected to the Borg Warner T5 gearbox using a cable clutch.
Options
The engine can be installed either vertically or in its 7° standard configuration, the bellhousing being supplied with gearbox holes to allow either angle.
Machined to order (lead time approximately 7 days).
You may also need the spigot bearing that fits directly in the end of the crankshaft. The RS2000 Clutch Fork and RS2000 Clutch Release Bearing may also be required.
This bellhousing can be used in a hydraulic configuration using our Borg Warner T5 Hydraulic Release Bearing Kit
You may also be interested in our Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover or Vauxhall 2.0XE Lightweight Steel Flywheel Standard Cover.
Please see the related products below.
Specification and Application
Component | Vauxhall 2.0XE Engine to Borg Warner T5 |
Type | Bare Casting Machined on front and rear faces Tapped to take standard Ford clutch fork (not included) |
Clutch Actuation | Cable |
Gearbox to Engine Face | 6.1 inch (155mm) |
Options | Vertical or 7° |
Engines | Vauxhall 2.0XE (Astra 16V) Saab B204 Saab B234 |
Gearboxes | Borg Warner T5 * Borg Warner T5 information |
Applications | Kit Cars Rally/Race – MkI/II Escort, Sierra, Lotus Cortina BriSCA F2 Classic Ford |
* Fits Sierrra Cosworth T5. The TVR gearbox flange is 4mm smaller in diameter and so will need spacing out. Mustang T5 has a different spline input shaft.
If using a USA or Australian T5 gearbox you may need our 10 spline 1 1/16″ clutch friction plate
Additional information
Weight | 6 kg |
---|
Very good product
Related Products
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate£126.00Add to basket
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction PlateHeavy duty 8 1/2″ (215mm) clutch friction disc with a 10 teeth 1 1/16″ spline pattern
£126.00Add to basket
Borg Warner T5 Hydraulic Release Bearing Kit
Borg Warner T5 Hydraulic Release Bearing Kit£152.25Select options
Borg Warner T5 Hydraulic Release Bearing Kit
Borg Warner T5 Hydraulic Release Bearing KitThis kit utilises a concentric release bearing and aluminium boss, with modification to the standard gearbox nose. The kit comes completed with all fixings required to convert your existing T5 gearbox. The slave cylinder inlet and bleed should be located vertically and the hydraulic clutch pipe routed through 2 holes drilled in the best location within the bellhousing flange for your application.
£152.25Select options
Plumbing Kit for Type 9 or T5 Hydraulic Release Bearing
Plumbing Kit for Type 9 or T5 Hydraulic Release BearingPlumbing Kit for Type 9 or T5 Hydraulic Release Bearing
Plumbing Kit for Type 9 or T5 Hydraulic Release BearingConnects our Ford Type 9 Hydraulic Release Bearing Kit or Slave Cylinder for Duratec Engine to Ford Gearbox Hydraulic Clutch to your car’s pedal box. Comes with fittings and enough pipe to allow the bleed nipple to be situated remotely.

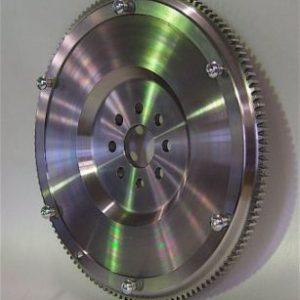

Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover
