Sunbeam or Avenger to Ford Bellhousing
Sunbeam or Avenger to Ford Bellhousing
£242.55

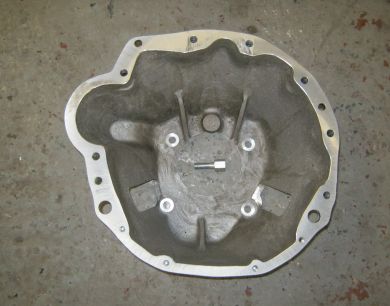

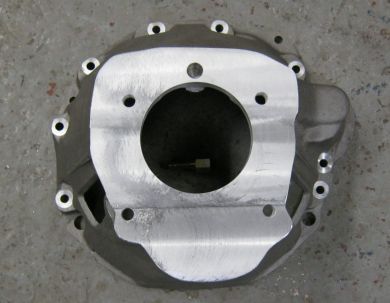

Talbot Sunbeam or Avenger 4 cylinder engine to Ford 4 speed or 5 speed Type 9 gearbox. Comes with the extended bolt which takes the standard clutch pivot.
Use in conjunction with the standard Sunbeam or Avenger release lever and bearing.
Use the standard Sunbeam 1″ 23 spline Sunbeam clutch plate.
Specification and Application
| Component | Sunbeam or Avenger alloy bellhousing |
| Type | Bare Casting Machined on front and rear faces Extended bolt to take the standard clutch pivot (not included) |
| Gearbox to Engine Face | 6.69 inch (170mm) |
| Engines | Sunbeam or Avenger 1.6 litre Ti or 2 litre Brazilian block |
| Gearboxes | Ford Type E (Rocket) 4 speed Ford Type 9 (Sierra) 5 speed * |
| Applications | Talbot or Chrysler Sunbeam Chrysler Avenger |
* 2.0l only; the 2.8l gearbox requires an additional adaptor plate due to the longer 1st motion shaft
Additional information
| Weight | 6 kg |
|---|
