Borg Warner T5 Hydraulic Heavy Duty Release Bearing Kit

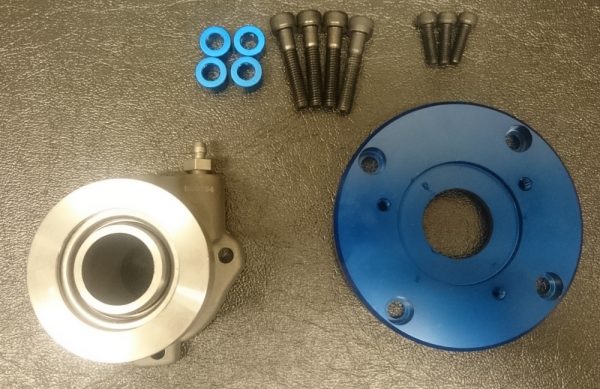

This kit utilises a concentric heavy duty release bearing and aluminium boss, with modification to the standard gearbox nose. The kit comes completed with all fixings required to convert your existing T5 gearbox. The slave cylinder inlet and bleed should be located vertically and the hydraulic clutch pipe routed through 2 holes drilled in the best location within the bellhousing flange for your application.

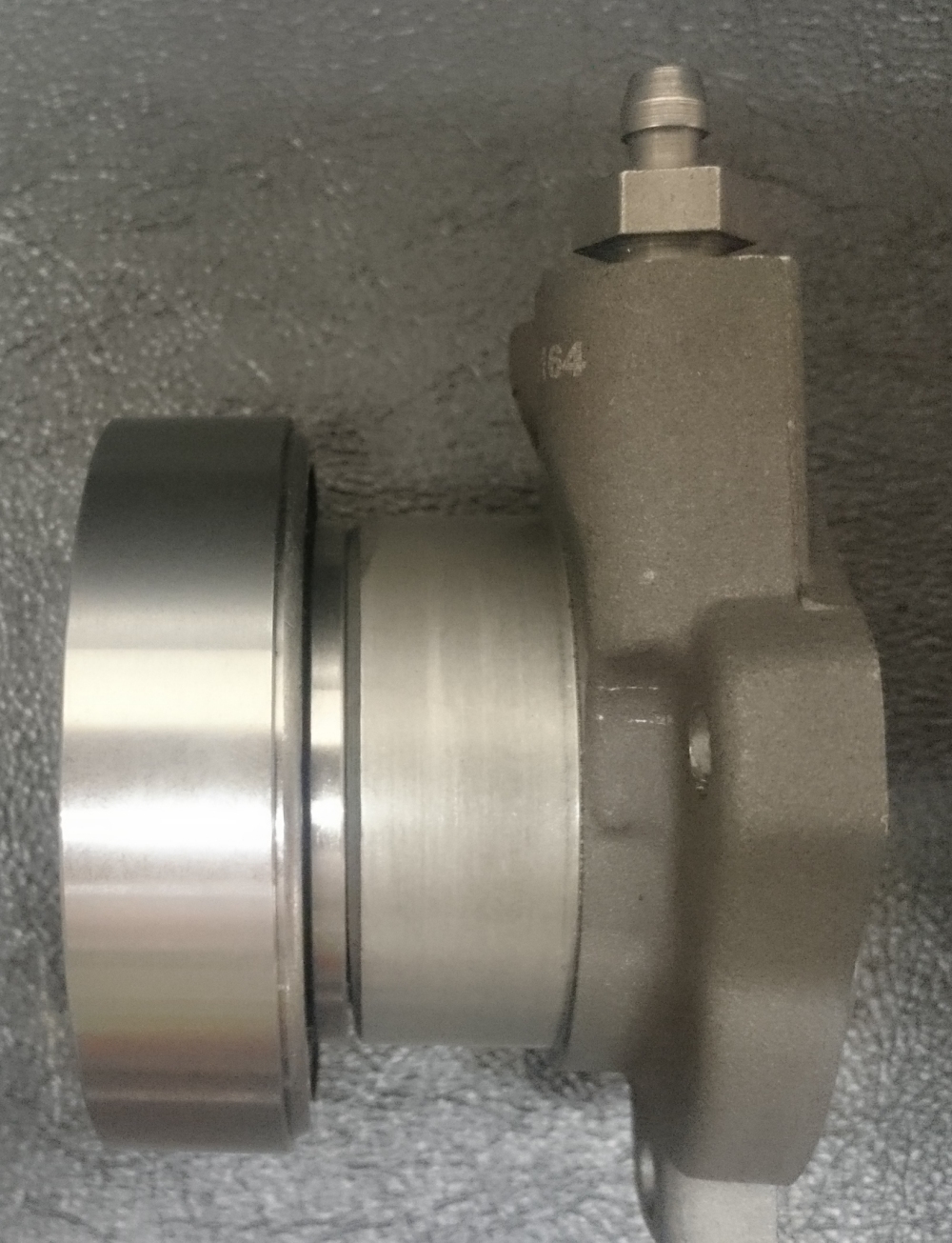

Utilises a high quality cast aluminium slave cylinder and heavy duty all steel sealed ball bearing. Comes complete with a circlip for better attachment to the slave cylinder. For use in competition or in applications where a heavier duty component is required.
Before use please carry out a “dry run” checking the actuation of the slave cylinder over the entire clutch pedal stroke. Over extension will result in the bearing being forced off the end of the inner shaft when the clutch is depressed
The slave cylinder and bearing work in a different way to a manual installation in that the release bearing is in constant light contact with the clutch diaphragm fingers. This is achieved by an internal spring within the thrust bearing. There is no need to be concerned that the release bearing is in contact with the diaphragm at all times.
Mounting plate height 40mm
Slave cylinder height 60mm open, and 40mm fully closed

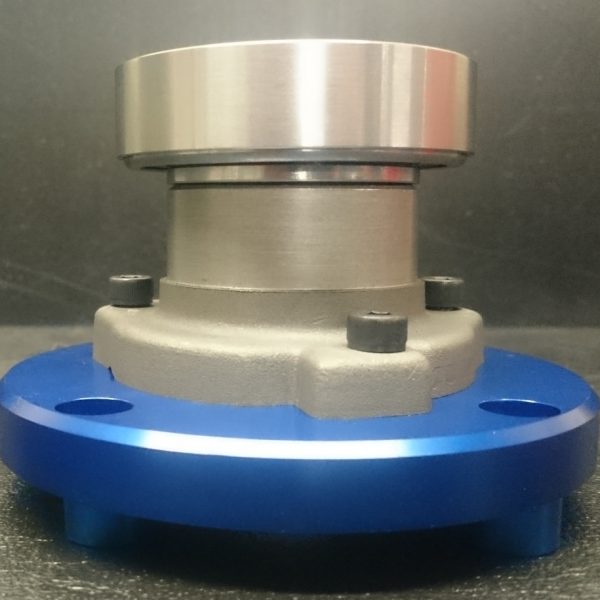

Assembled heights 100mm open and 80 mm fully closed
The adjustment shims are 3mm thick

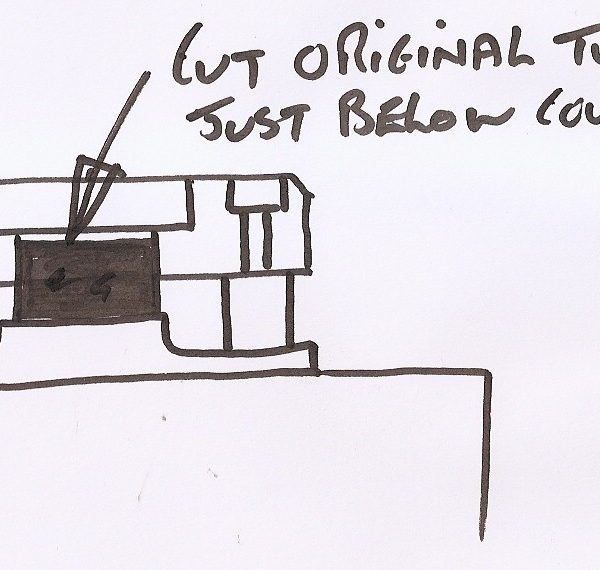

Note:It is necessary to shorten the original thrust bearing tube and substitute the original bolts for the longer ones supplied. See the second picture for an illustration of how to achieve this. There is no need to disturb the front gearbox bearing.

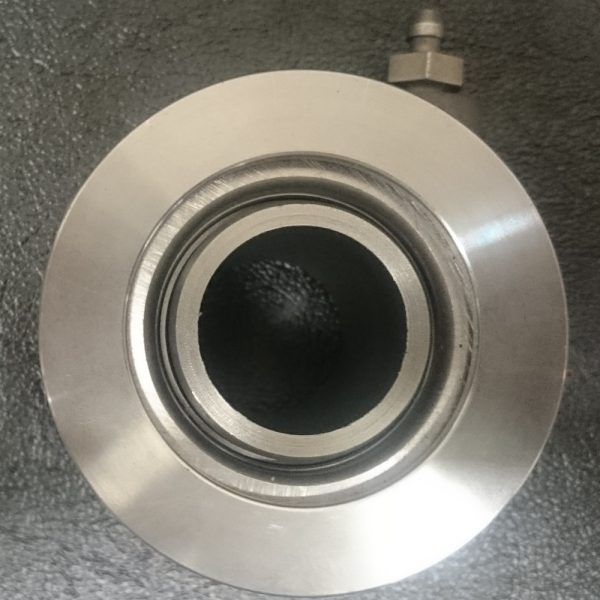

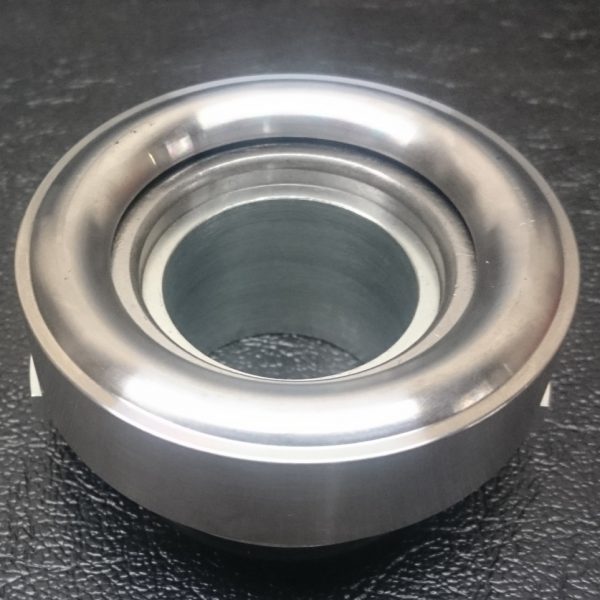

Please specify a flat release bearing for curly finger diaphragm springs and a radiused bearing for flat diaphragm springs.
A mechanical clutch pedal stop must be fitted to prevent the slave cylinder over throwing, which will lead to fluid leaks and seal damage.
Please see the Fitting Instructions for more information.
Specification and Application
|Component||Borg Warner T5 Hydraulic Heavy Duty Release Bearing Kit|
Concentric slave cylinder
2x height adjustment shims
3x 6mm bolts and lock washers
4x 8mm bolts and lock washers
|Gearboxes||Borg Warner T5 Borg Warner T5 information|
|Centre of the release bearing where the input shaft passes through||28.5mm diameter.|
|Thread sizes||feed 10 x 1mm|
bleed 8 x 1.25mm
|Inner face diameter||47mm|
|Outer face diameter||70mm|
* When using a shallower clutch cover the release bearing may need spacing forward in order to achieve full clutch depression
** To be used with a .625 (5/8″) master cylinder
*** Please email if more shims are required
