RWD Motorsport Heavy Duty Pinto Clutch Cover
RWD Motorsport Heavy Duty Pinto Clutch Cover
£275.10
Heavy duty organic clutch cover assembly by RWD Motorsport. Fits our Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate and Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate.
Specially made for RWD Motorsport from heavy duty aluminium. Direct replacement for the difficult to get hold of AP Racing clutch cover CP2511-1
Suitable for use with any Ford Type 9 or 4 speed gearbox and engine combination including:
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing (if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing(if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Pinto or Cosworth to Borg Warner T5 Bellhousing
RS2000 Type Bellhousing (cable clutch)
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
Specification and Application
| Components | Heavy Duty Aluminium Clutch Pressure Plate |
| Clutch Torque Capacity | 280 ft lb / 380 Nm * |
| Clutch Friction Disc Thickness | 0.33″ / 8.5mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
| Engine | Any engine that either uses the Ford Pinto 8 1/2″ clutch or that has sufficient diameter within the standard cover to accept a 215mm clutch |
| Compatible Lightened Flywheels | Ford Duratec Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec E Lightweight Steel Flywheel Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 Borg Warner T5 ** Borg Warner T5 information |
| Applications | Kit cars Rally / race Fast road |
* Using a heavy duty clutch friction plate with equivalent torque capacity
** SIerra Cosworth 23 spline 1″ input shaft only
Additional information
| Weight | 4 kg |
|---|
Related Products
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction PlateHeavy duty 8 1/2″ (215mm) clutch friction disc with a 23 tooth 1″ spine pattern
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction Plate
Mustang Falcon Commodore Heavy Duty 8 1/2 Inch Clutch Friction PlateHeavy duty 8 1/2″ (215mm) clutch friction disc with a 10 teeth 1 1/16″ spline pattern
Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover
Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover
Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover
Vauxhall 2.0XE Lightweight Steel Flywheel Ford CoverVauxhall 2.0XE (red top) lightweight steel flywheel to suit Ford 8 1/2″ friction clutch plate and Ford Pinto Vauxhall cover.
Machined from billet steel, our flywheels feature an integral ring gear. Much lighter than the original flywheel this flywheel is suitable for a standard or uprated Ford 8 1/2″ clutch plate Ford Pinto cover, allowing the engine to mate to 23 spline 1″ Type 9 or Rocket Ford gearboxes.

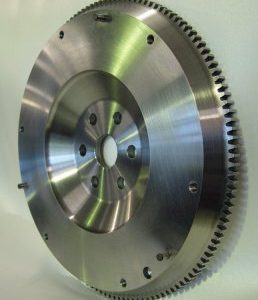

Ford Zetec E Lightweight Steel Flywheel
Ford Zetec E Lightweight Steel FlywheelFord Zetec E * lightweight steel flywheel to suit standard 220mm diameter Zetec E clutch cover and Ford 8 1/2″ clutch plate or Ford Pinto 8 1/2″ clutch plate and cover (comes pre-drilled to suit either option). Machined from billet steel, our flywheels feature an integral ring gear. Much lighter than the original, this flywheel is suitable for a standard or uprated Ford 8 1/2″ clutch.

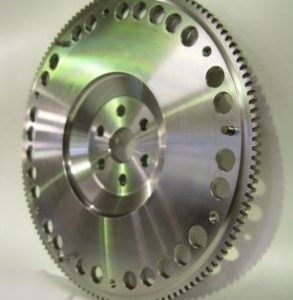

Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate
