Duratec Engine to Toyota W Series Gearbox Bellhousing Heavy Duty Clutch Kit

Duratec Engine to Toyota W Series Gearbox Bellhousing Kit-0

Duratec Engine to Toyota W Series Gearbox Bellhousing Heavy Duty Clutch Kit

£1,140.00

This is a complete kit that allows a successful connection of any Toyota W series gearboxe to the Ford Duratec 4 cylinder engine.

Compare
SKU: AF56-1 Category: Tags: , , , , , ,

Share this product

Allows the Ford Duratec engine to be mated to the wide range of Toyota W series 5 speed gearboxes available. These gearboxes, in particular the DW56 are a strong and slick shifting alternative to the Sierra 5 speed boxes, which are increasingly in short supply.

This is a complete kit with heavy duty clutch that allows a successful connection of any Toyota W series gearbox to the Ford Duratec 4 cylinder engine.

Please see our Ford Duratec Engine page for more information.

Specification and Application

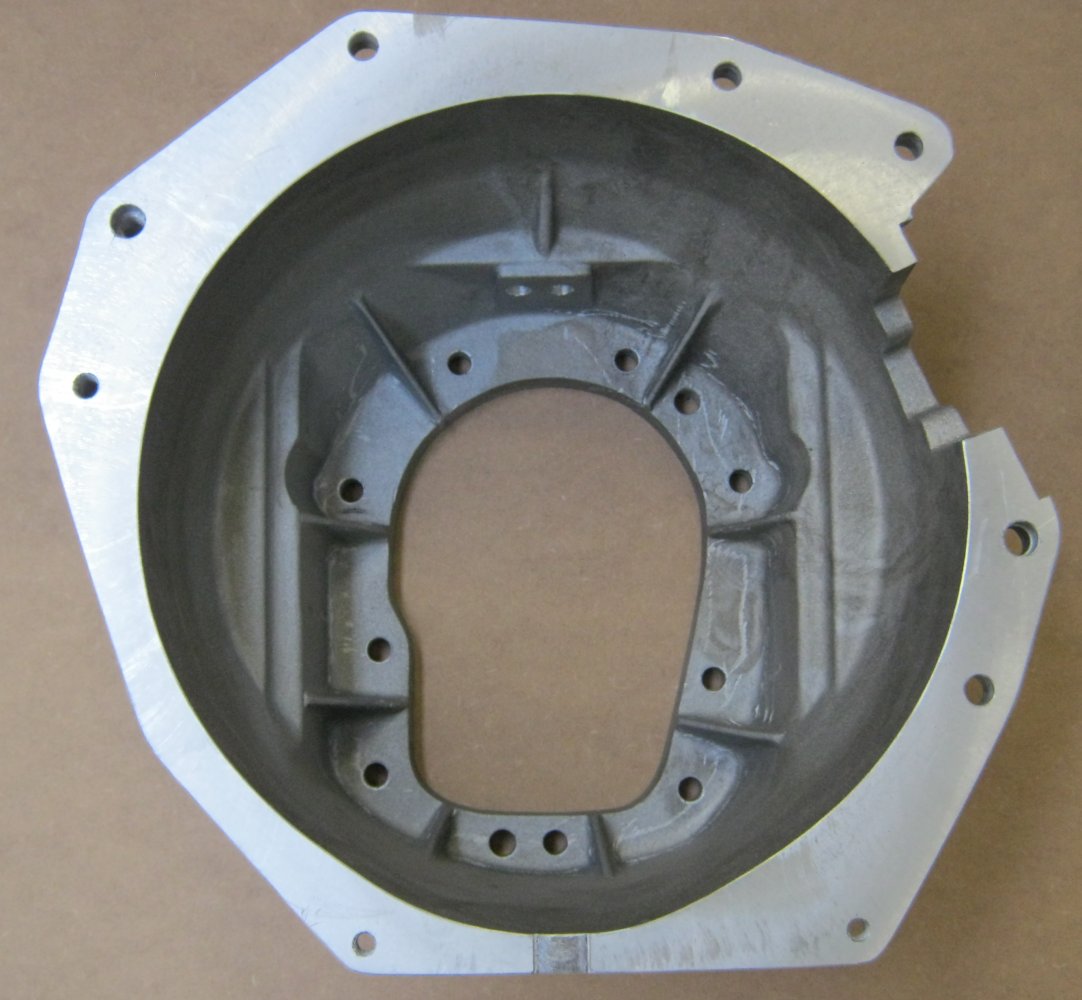

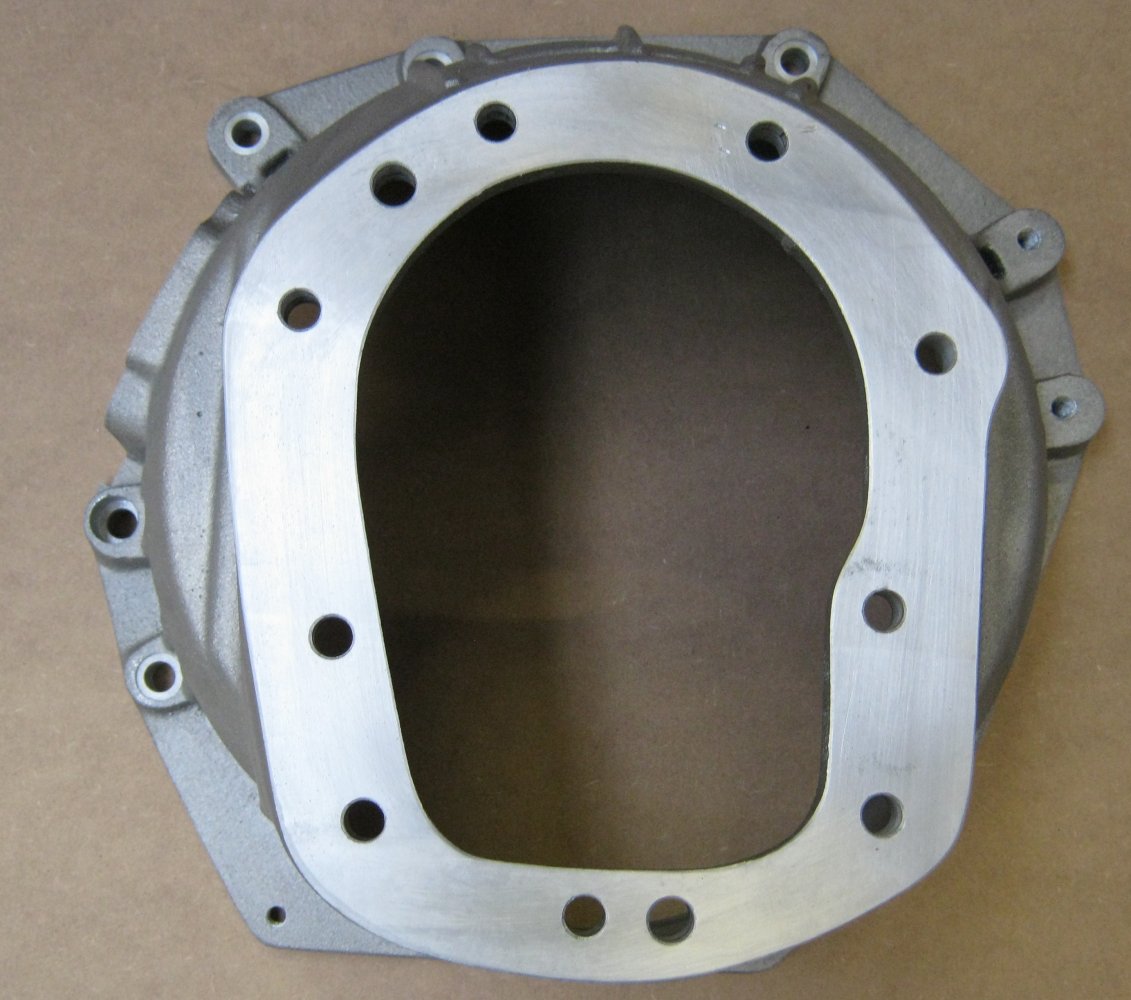

Component Duratec Engine to Toyota W56 Bellhousing
Toyota W Series Hydraulic Release Bearing Kit
Plumbing Kit for Hydraulic Release Bearing

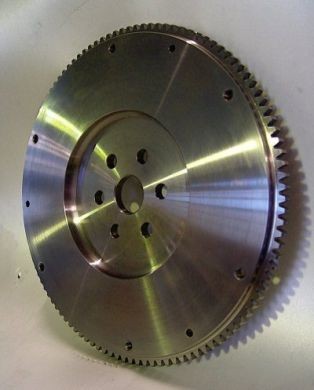

Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate

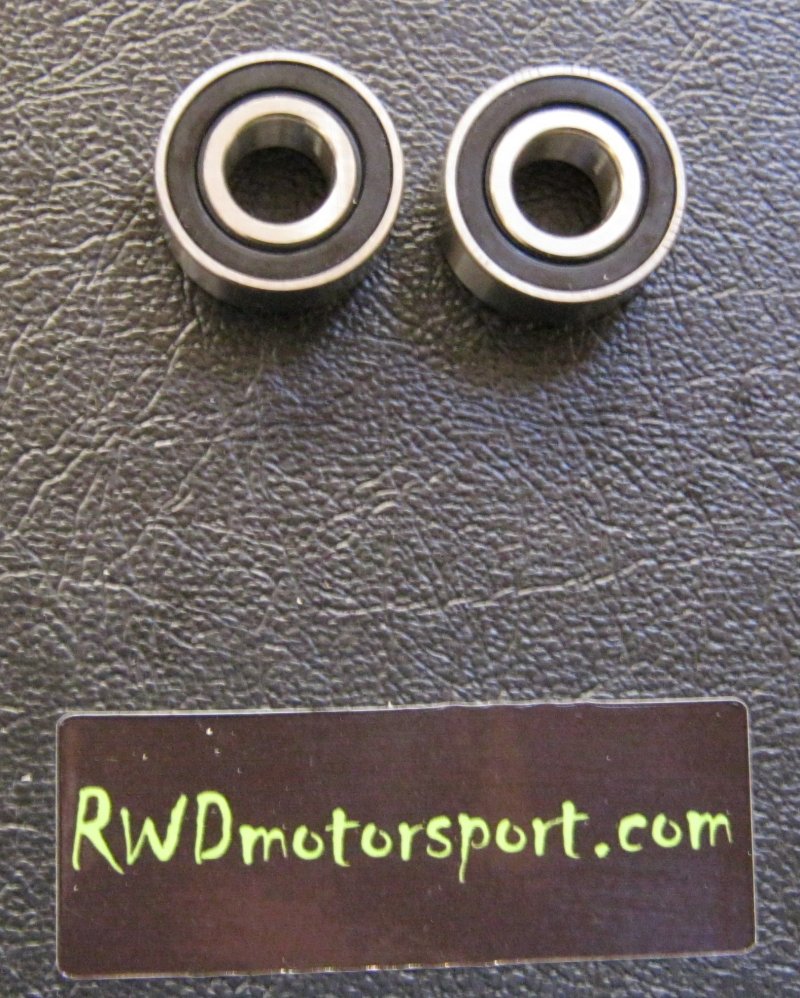

Spigot Bearing x 2

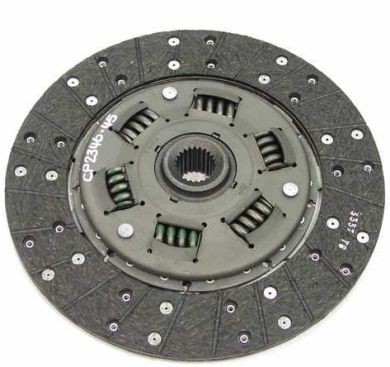

Heavy Duty Clutch Plate (uprated linings 8 ½” Toyota splines)
Heavy Duty Clutch Cover (Ford 8 ½” clutch)
Actuation Hydraulic slave cylinder
Gearbox to Engine Face 6.496 inch (165mm)
Engines Ford 1.8 Duratec
Ford 2.0 Duratec
Ford 2.3 Duratec
Gearbox Toyota W series including:
W56
W58
Applications Kit cars
Rally / race

Additional information

Weight 21 kg
