Duratec Hydraulic Clutch to Ford Type 9 Bellhousing Kit
A complete bellhousing, clutch and release kit to connect the Ford Duratec 1.8 2.0, 2.3 and 2.5 to any Ford Type 9 pattern gearbox. This kit uses hydraulic actuation.
The quick release option allows quicker gearbox removal and fitting by moving the 4 internal gearbox to bellhousing bolts to the outside of the gearbox. This allows the gearbox to be removed whilst leaving the bellhousing in place.
The lightweight steel flywheel replaces the standard dual mass flywheel, which is heavy, bulky and can fail in competition or fast road comditions. Uses an integral starter ring
The high quality heavy duty clutch kit kit includes an uprated clutch cover, retaining bolts and friction disc.
The hydraulic clutch kit utliises a boss that replaces the gearbox nose. Some of the gearboxes listed below will come with their own concentric cylinders.
The spigot bearing converts the crankshaft to accommodate the Ford Type 9 Gearbox in a RWD installation. Needed in order to support the longer length of the Ford Type 9 gearbox input shaft. Fits in the standard recess in crankshaft.
Gearboxes that use the Ford Type 9 bolt pattern (please check yiour specific gearbox designation and input splines)
- Ford Type 9 5 Speed
- Quaife sequential
- Drenth sequential
- Tractive sequential
- Samsonas H type and sequential
Please see our Ford Duratec Engine page for more information.
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing
Ford Duratec lightweight Steel Flywheel - 8 1/2" Clutch Plate

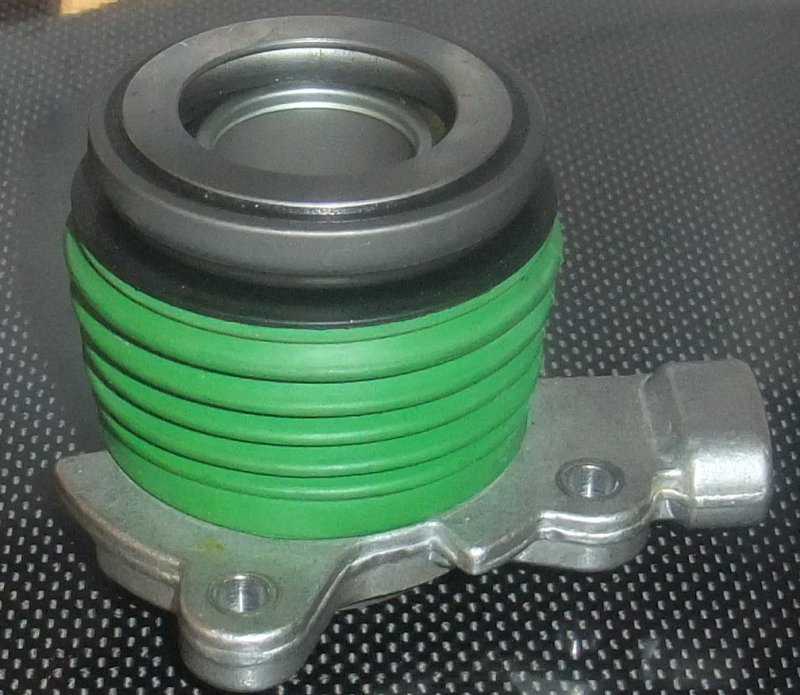

Slave Cylinder for Duratec Engine to Ford Gearbox Hydraulic Clutch
|Slave cylinder length
Plumbing Kit for Type 9 or T5 Hydraulic Release Bearing
Heavy Duty Pinto Clutch Cover and Organic Clutch Plate
Duratec ARP flywheel bolt set
