Honda K20 and K24 to Ford Type 9 Bellhousing

Be the first to review this product

Availability: In stock

£350.00

Quick Overview

This bellhousing will mate the Honda K20 or K24 engine to the Ford Type 9 gearbox, Ford 4 speed or any sequential gearbox that uses the Ford Type 9 pattern.

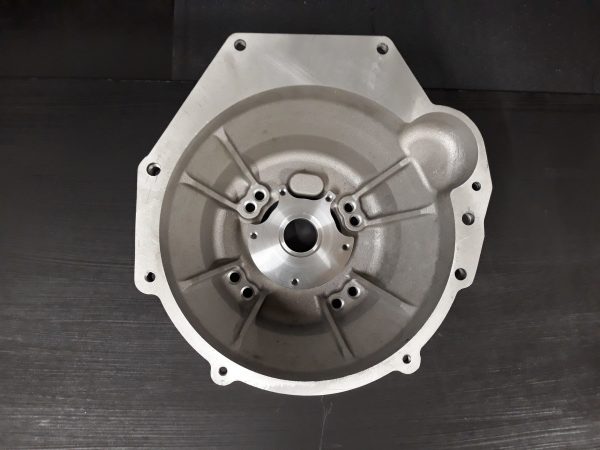

Engine view

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Engine view
  • Gearbox view
  • Side view
  • Top view

* Required Fields

£350.00

Details

Honda K20 or K24 engine to Ford Type 9 or Type 9 pattern gearbox. The bellhousing is available in quick fit* or standard fitment, which can be chosen below. The bellhousng is pre-drilled to allow 0 degrees (vertical) or the standard 15 degrees alignment.

The bellhousing comes with a mounting boss that accepts our Hydraulic Heavy Duty Release Bearing.

Use our Honda K20 And K24 Heavy Duty Clutch Cover And Friction Disc Kit.

The Honda K20 And K24 Engine To Ford Type 9 Gearbox Gearbox Spigot Bearing will be required to support the Type 9 input shaft.

Component Honda K20 or K24 to Ford Type 9
Type Bare casting
Machined on front and rear faces
Actuation Hydraulic slave cylinder
Gearbox to Engine Face 7.48 inch (190mm)
Engine - Honda K20 or K24 Honda Civic Type R
Honda Integra Type R
Honda Accord Euro R
Honda Accura
Honda CRV
Gearbox Ford Type 9 5 Speed
Quaife sequential
Drenth sequential
Tractive sequential
Samonas H type and sequential
Applications Kit cars
Rally / race

* The quick release option allows quicker gearbox removal and fitting by moving the 4 internal gearbox to bellhousing bolts to the outside of the gearbox. This allows the gearbox to be removed whilst leaving the bellhousing in place, making a difficult job much easier. The gearbox is attached to the bellhousing using 10mm cap head bolts fitted from the rear of the bellhousing face of the gearbox

Additional Information

Product Code AF84
